ZQL-1200红外线桥式中切机

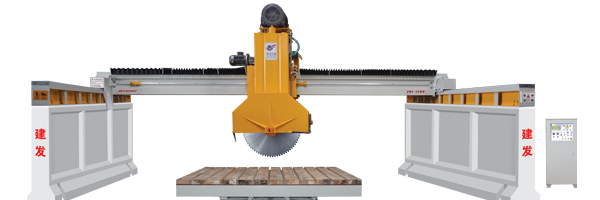

ZQL-1200红外线桥式中切机

用途:用于加工条石、碑石、工艺石等产品。 特点:该机采用大跨度桥式结构,配有360°旋转工作台,大梁移动实现横向分片。具有切割深度大,旋转灵活,定位准确度大,工作平稳等特点。主要采用进口变频器可实现切割速度的无级调速。 Purpose: It is applicable for cutting slabs with high value and large size. Features: Controlled by microcomputers, the machine is generally positioned by fully automatic girder displacement, with easy operation and high cutting accuracy, and can make use of slabs to the utmost extent. Main elements of the machine are imported high-quality components and parts, which ensure the stable mechanical property, strong applicability and high reliability.

主要技术参数/Technical Data
名称

appellation

ZQJ-1200

ZQJ-1400

工作台尺寸

worktable dimensions

3200x2000mm

3200x2000mm

设备外形尺寸

dimension of external form

6400x4950x4300mm

6800x4950x4300mm

锯片直径

blade diameter

600-1200mm

800-1400mm

最大切割尺寸

max cuting size

3200x3200x480mm

3200x3200x580mm

锯片升降行程

blade vertical stroke

680mm

680mm

工作台旋转角度

range of trolley

90n°

90n°

主电机功率

main motor power

18.5kw

22kw

耗水量

water consumption

4m3/h

4m3/h

总重量

weight

≈7300kg

≈7800kg

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
