切石机 /
DBQS-6P单臂组合切石机

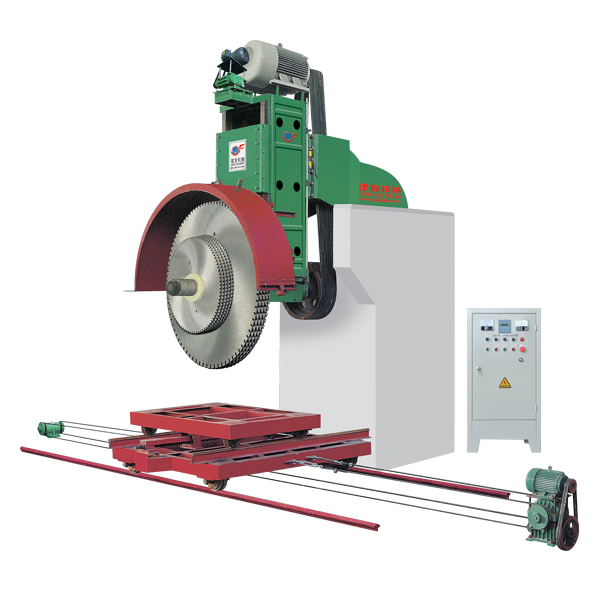

DBQS-6P单臂组合切石机

用途:用于大中型大理石,花岗石及硬性石材荒料的分片切割。 特点:本机自动化程度高、分片、切割、进给等各种动作由电控箱集中控制。锯片可根据需要组成多种组合,稳定性好,加工精良,低耗高效。 Purpose: It is applicable for fragmentation and cutting of large & medium marbles, granites and rigid rough blocks. Features: The machine has high automation degree; actions like fragmentation, cutting and feeding are collectively controlled by the electric cabinet. The saw blade can have various combinations as required, with good stability, excellent processing precision, low consumption and high efficiency. The single arm is made up and sawn

主要技术参数/Technical Data
名称

appellation

DBQS-3P

DBQS-6P

DBQS-10P

加工荒料尺寸

size of processing blocks

3500x1300x1100mm

3500x1300x1100mm

3500x1300x1100mm

锯片升降行程

blade vertical stroke

1200mm

1200mm

1200mm

锯片直径

blade diameter

1600-2500mm

1600-2500mm

1600-2500mm

主电机功率

main motor power

30kw

37kw

45kw
锯片数量

blade quantity

1-3pc

1-6pc

1-10pc
总重量

weight

≈6500kg

≈7500kg

≈8000kg
注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸,又可定制升降油压系统。

Remark: processing width size and equipment installation dimensions, motor power, can build the corresponding size according to customer needs, and can be customized hydraulic lifting system.
